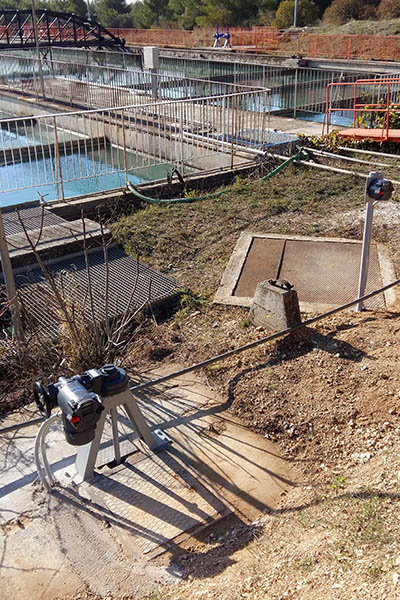

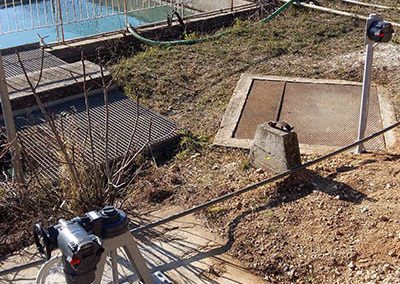

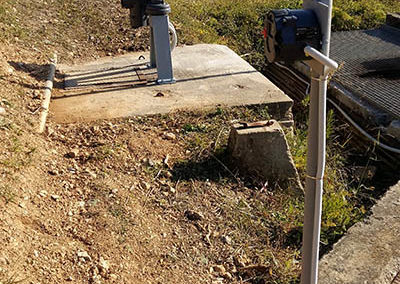

Project : Automation of 32 raw water inlet valves of the old settling tanks
Location : EYDAP S.A. – Acharnon Water Treatment Plant

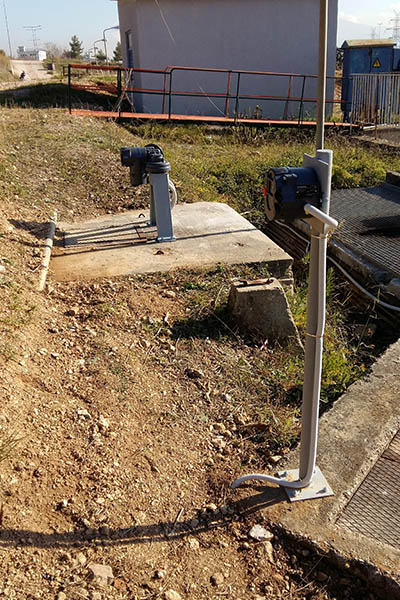

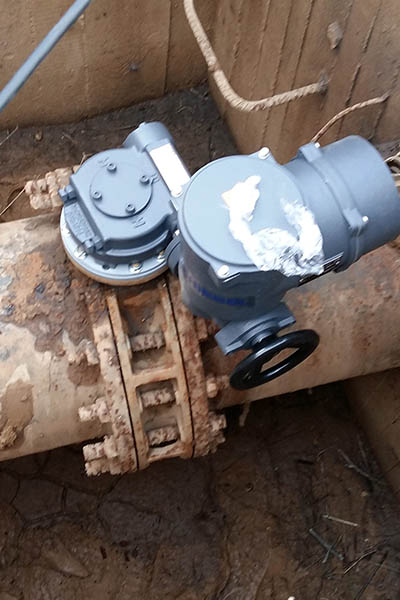

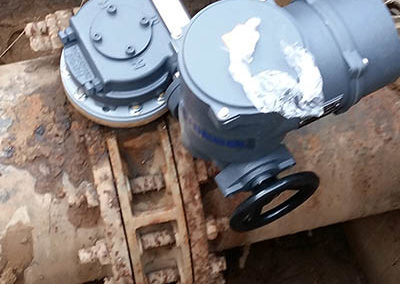

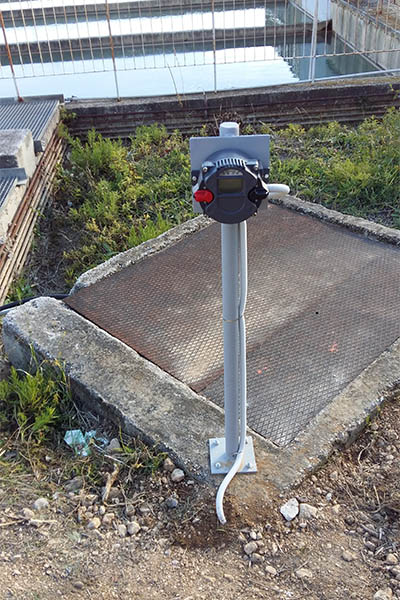

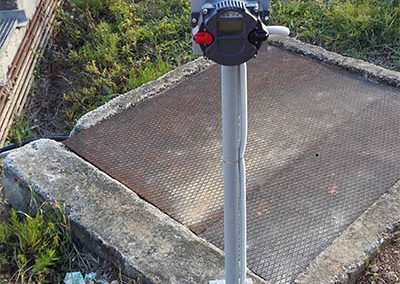

The total amount of valves is consisted of 16 gate valves and 16 butterfly valves. Compact Schiebel actuators were used ( CM Series , On-Off S2 motor type) with integrated control unit (for butterfly valves the control unit was separated).

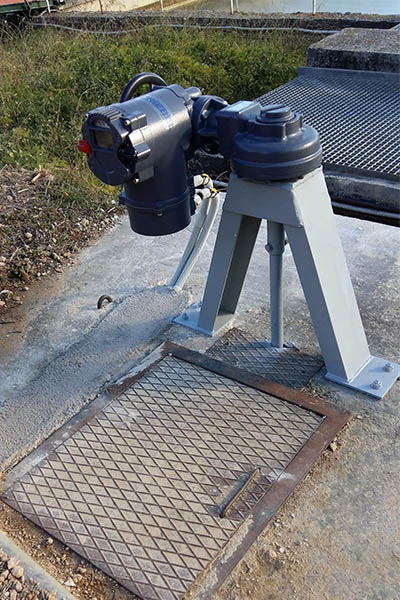

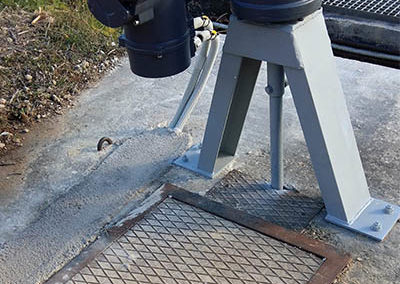

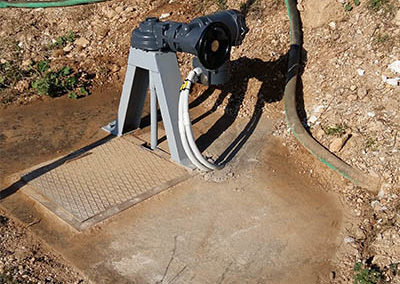

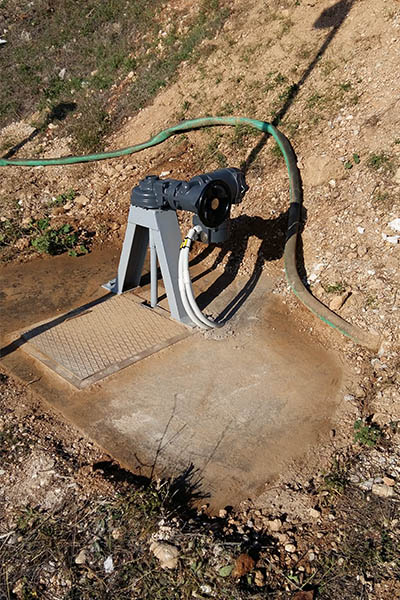

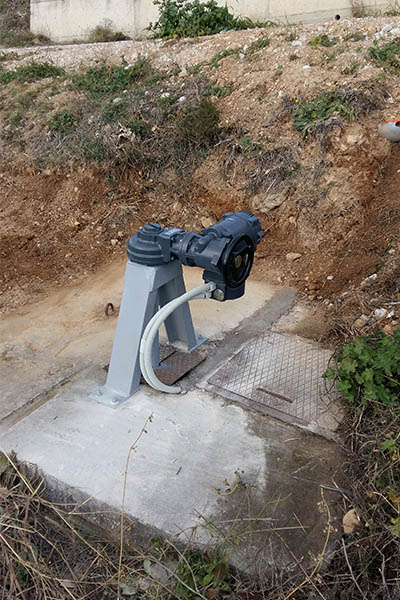

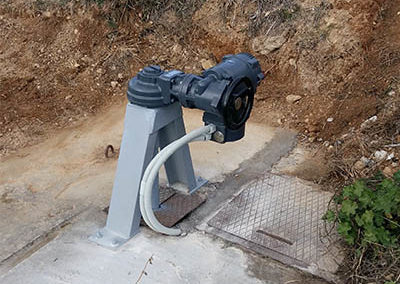

Also, special metal bases were built to ensure that the support is statically and dynamically adequate and that the maximum torque is transmitted to the axis of the valve.
Scope of supply involved the adaptation and installation of the new Schiebel Actuators in the old valves, the routing of all necessary cables for control and power supply as well as commissioning.
